1/4" UNS N06625 Oilfield Encapsulated Control Line 3lines With Flat Pack
An increasing number of projects in the oil service industry require the use of continuous lengths of stainless steel control lines. They are used in a variety of applications, including chemical injection, hydraulic control, instrumentation umbilicals and flowline control.
MTSCO offers products for all of these applications, helping customers reduce operating costs and improve recovery methods.
Control Line Technical Details:
| | line 1 | line 2 | line 3 |
| Outside diameter (in) | 1/4" | 1/4" | 1/4" |
| Wall thickness (in) | 0.049" | 0.049" | 0.035" |
| Color coding | According to customer's request |
| Flush and Filling | Oil |
| Manufacturing specification | ASTM B704 | ASTM B704 | ASTM B704 |
| Yield strength (psi) | ≥34954 | ≥34954 | ≥34954 |
| Test Pressure (psi) | 5000 | 5000 | 5000 |
| Maximum Hardness (HB) | 85-90HRb | 85-90HRb | 85-90HRb |
| Tolerance: WT(%) OD (mm) | WT ±5% OD±0.003 | WT ±5% OD±0.003 | WT ±5% OD±0.003 |
| Material: TP316L, S32205, Alloy825/N08825, Alloy400/ N04400, Alloy625 N06625 |  |
| Outer Diameter: 1/4“, 3/8”,1/2“ |
| Wall Thickness: 0.035”,0.049“,0.065” |
| Length : PER FT |
| Application : Inhibitor Supply control |
| Pressure Rating : 15000 Psi |

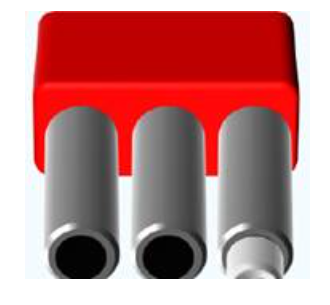

| Type : HYDRAULIC FLAT PACK |
| Additional Material Specs : PVDF Encapsulation | Size : 3lines x 1/4" 0.049WT |
| Additional Features : Color coded, oil filling, fluid filling | Encapsulation Size : 33 x 11mm |

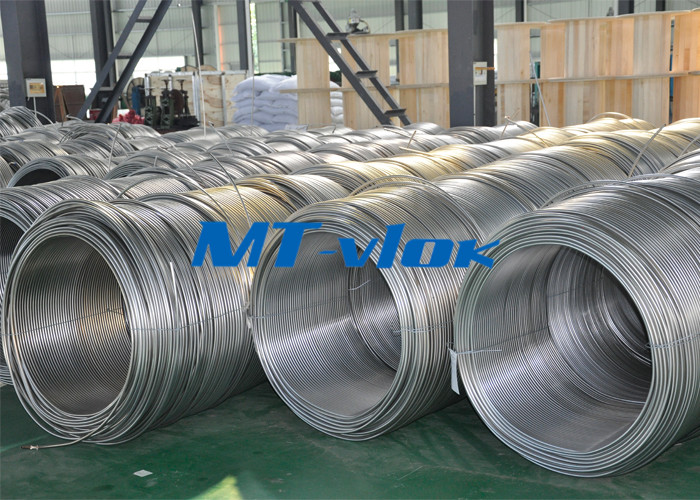

MTSCO has been supplying industrial tubing to the oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our coiled tubing has been successfully used in certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of the oil and gas industry and other industries.
About MTSCO:

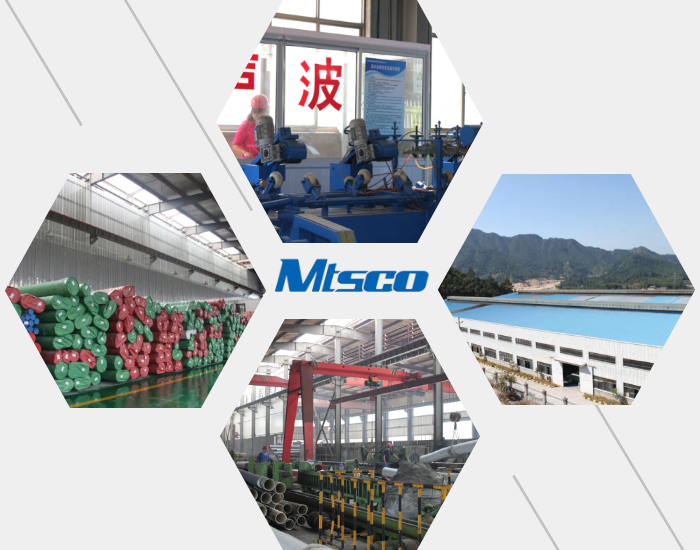

Who MTSCO IS?
MTSCO established in 2006, during many years’ development, now becomes a large and professional industrial piping system provider, serving customers from more than 100 countries and regions.
What products can MTSCO provide?
What materials can MTSCO provide?
Austenitic: 304/L/H/N,316/L/H/N/Ti,321/H,309/H,310S,347/H,317/L904L
Duplex steel: 31803,32205,32750,32760
Nickel Alloy:
UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556
UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926
UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200
How can MTSCO service customers?
MTSCO's ISO9001 Quality System is issued by TUV. Our full and professional inspection reports contain two parts, one is self-inspection of the requirements beyond ISO9001, which is 100% inspected by our own QC; another is 100% inspected by professional QC teams.
For more information, you are welcome to contact us by email. Thank you for your interest.
